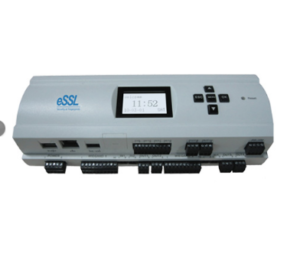

| Elevator Controller – EC10 |
|
| Floor Button Control Relays |
10 |
| Fingerprint Capacity |
3,000 |
| Proximity Card Capacity |
30,000 |
| Event Capacity |
1,00,000 |
| Power Supply |
12V DC 1A |
| Communication to computer |
Ethernet, RS485 |
| Communication to EX16 |
RS485 |
| Number of supported EX16 boards |
3 |
| EX 16 |
|
| Floor Button Control Relay |
16 |
| Communication to EC10 |
Rs485 |
| RS485 address |
Set by DIP switch |
| Power Supply |
12V DC 1A |
|
|
Features |
| – |
Supports both RFID and Fingerprint slave readers |
| – |
Fail Safe Mode |
| – |
Real-time upload of user access privileges |
| – |
Real-time event monitoring |
| – |
User-defined floor access privilege |
|
|
|
Software and Database Supported : |
| – |
Software :- Bio Security 3.0.1.0_R |
| – |
Database Type :- PG SQL / MS SQL / Oracle |
|
|
|
|
|
